Tanks built to your drawing, not a catalog.

Extrusion-welded polypropylene and HDPE tanks for DEF, fire apparatus, and industrial uses. Any footprint, to the 1/8 inch, with ports and features where your system needs them. Proudly built in Ocala, Florida.

96″ L38″ W34″ HCAPACITY≈ 500 galFOOTPRINT96 × 38 × 34 in144″ L32″ W27″ HCAPACITY≈ 500 galFOOTPRINT144 × 32 × 27 in50″ L48″ W51″ HCAPACITY≈ 500 galFOOTPRINT50 × 48 × 51 in120″ L40″ W26″ HCAPACITY≈ 500 galFOOTPRINT120 × 40 × 26 in60″ L50″ W41″ HCAPACITY≈ 500 galFOOTPRINT60 × 50 × 41 in

YOUR CAPACITY. YOUR FOOTPRINT. YOUR FEATURES.

WELDED TO DVS 2205 / 2207 HYDROSTATIC & SPARK TESTED ISO 22241 COMPATIBLE BUILT TO NFPA 1901 UNDER 6 WEEKS AFTER APPROVED DRAWINGS

WHAT WE BUILD

Multiple product lines. One shop. Every design built to your specification.

No fixed catalog and no minimum order. Send a drawing, a sketch, or a footprint and a gallon count, and we build from there.

01 · POWER GENERATION

DEF / Urea Storage Tanks

Polypropylene or HDPE base material, built to the footprint of your enclosure or pad. ISO 22241 compatible with NPT ports from 1/4″ to 6″ placed where your system needs them.

See the details

02 · FIRE & RESCUE

Fire Apparatus Tanks & Components

Baffled polypropylene water tanks and apparatus components, built to your NFPA 1901 requirements and the chassis they ride in.

See the details

03 · INDUSTRIAL

Industrial & Water Tanks

Water and chemical storage tanks in polypropylene or HDPE, perfect for your industrial application. Partitioned and gusseted for strength and sized to fit your project.

See the details

04 · CUSTOM

Custom Fabricated Products

Spill containment, custom tanks, battery trays, and miscellaneous custom parts built to your design or idea.

See the details

WHY WELDED SHEET

No molds or tooling costs. No minimum orders.

Your job specs built to your requirements.

Rotomolded tanks are produced from fixed molds, so they come in standard sizes and the rest of the project has to be designed around them. Our extrusion-welded tanks are built from poly sheet to your exact dimensions, with no tooling to buy and no standard size to work around.

You define the capacity, the footprint, and the features. We build the tank to fit the project.

How welded poly compares with stainless and rotomolded
UL 142 / UL 2085 SUB-BASE FUEL TANKStub area varies by design.L 48″W 65″H 24″COLLAB DEF TANK48 × 65 × 24 in · ≈ 300 galBuilt to fit in your specified areaL 41″W 90″H 30″COLLAB DEF TANK41 × 90 × 30 in · ≈ 445 galBuilt to fit in your specified areaL 26″W 140″H 40″COLLAB DEF TANK26 × 140 × 40 in · ≈ 585 galBuilt to fit in your specified areaL 36″W 110″H 34″COLLAB DEF TANK36 × 110 × 34 in · ≈ 545 galBuilt to fit in your specified area

HOW WE BUILD

From your drawing to a tested tank.

AVERAGES UNDER 6 WEEKS AFTER APPROVED DRAWINGS

01
COLLAB PLASTIC DESIGNSDWG NO. YOURS-01 REV ALW

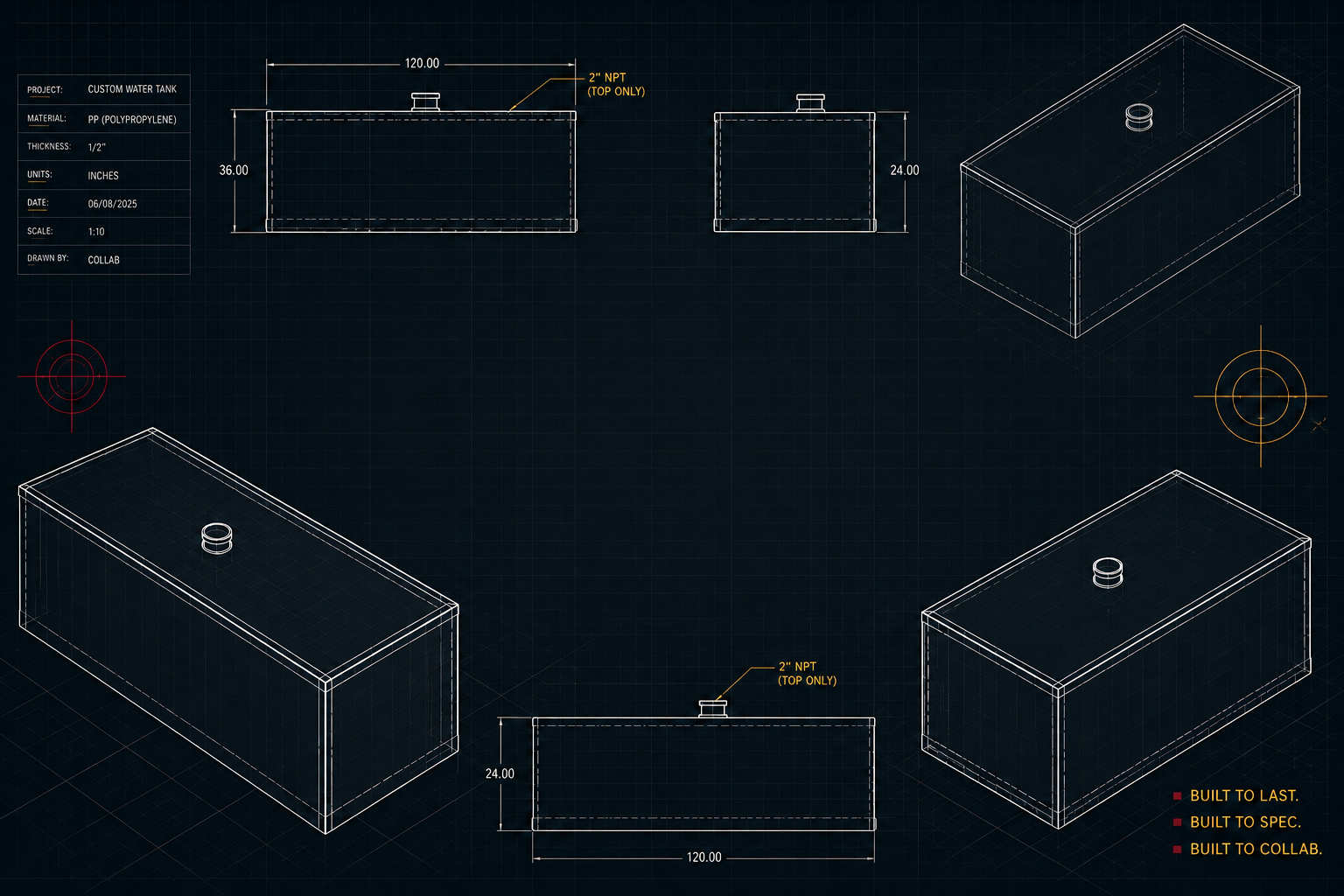

Your drawing or ours

Send us a drawing, a sketch, or just the footprint and required gallons. After the quote is approved we will return a submittal drawing with dimensions, port locations, and selected features.

02

CNC routed from sheet

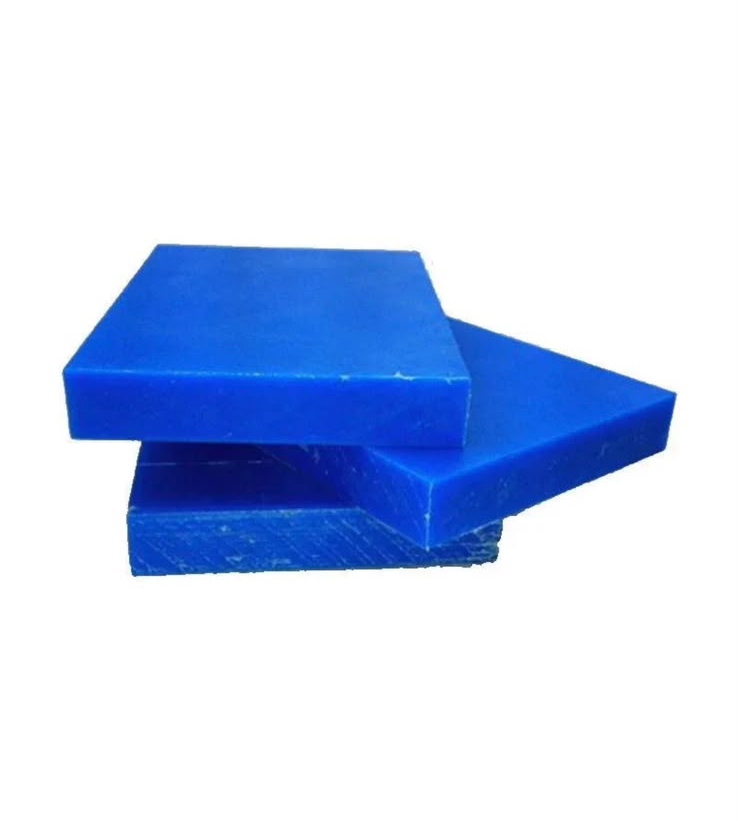

Every panel, partition, and gusset is cut on a CNC router from copolymer polypropylene or HDPE sheet.

03

Extrusion welded to DVS

Welded inside and out to DVS 2205 and 2207 by trained fabricators, and designed to withstand the vibration, temperature extremes, and chemical exposure of demanding service environments.

04
CERTIFICATE OF COMPLIANCEHYDRO · SPARK · 1.5 PSI

Tested and documented

Hydrostatic and spark tested before it leaves our facility, marked with its tank ID and capacity, and shipped with a Certificate of Compliance.

ONE MATERIAL. MANY FLUIDS.

Built for the fluid, not just the footprint.

The fluid decides the material. Copolymer polypropylene and HDPE sheet handle DEF, water and foam, mobile water storage, and a wide range of chemical solutions without corrosion, liners, or paint, and we confirm compatibility for every application before we cut sheet.

Whatever the tank holds, it is built the same way: welded sheet, partitioned for the load, sized to your drawing.

Materials and specs
DEF / UreaISO 22241 compatible. No metal contact, no contamination, no corrosion.
Water and foamFire apparatus water and foam tanks, and industrial water, with no rust, no liners, no coatings.
Mobile water storageTanks for trucks, trailers, and skid-mounted equipment, baffled against surge and sized to the application.
Chemical solutionsPest control, agricultural spray, cleaning agents, and other treatment and process chemicals. Compatibility confirmed for every application.
–20°F to 180°FService temperature window
20–30 yearsDesign life, UV-stabilized sheet
About 1/3The weight of a comparable stainless tank
100%Recyclable, single material, no coatings

INSIDE EVERY TANK

Built to carry the load, not just hold the fluid.

A tank full of fluid on a moving vehicle or a running genset is a structure, not a box. Every Collab tank is partitioned and gusseted for that load, and every seam is welded inside and out.

123456
1
Solid sheet wallCopolymer polypropylene or HDPE exterior walls, 1/2″ standard and 3/4″ available. Nothing to corrode, peel, or delaminate: no liner, no coating.
2

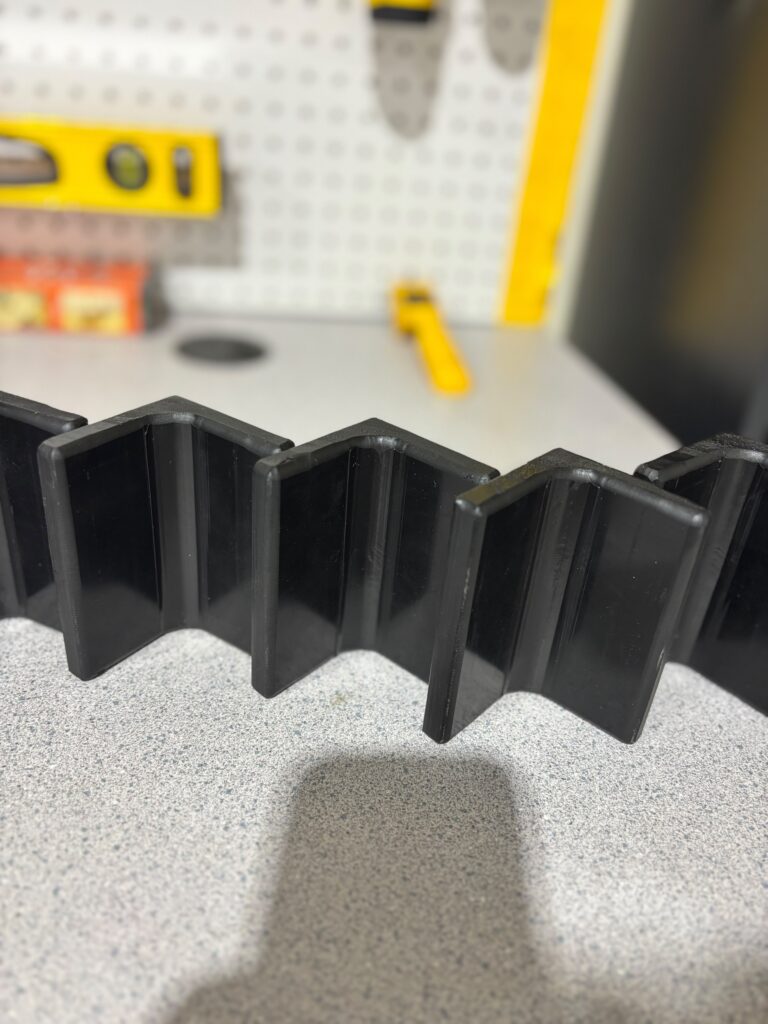

Compartmented for surgePartitions keep the fluid from slamming end to end on braking, cornering, or startup, and tie the walls together so the tank holds its shape when full.
3
Fills and drains as one tankFlow relief at the floor and at mid-height lets every compartment fill, vent, and drain together, with no trapped volume.
4
Support gussets, when requiredLarger tanks are gusseted where the wall loads call for it, so the walls stay flat under a full load for the life of the tank.
5
Welded for the long haulEvery seam extrusion welded inside and out to DVS 2205 and 2207. No gasket, fastener, or adhesive to fail.
6
Plumbing, ports, and lifting to your drawingNPT ports, lifting points, and internal piping go where your system needs them. Internal lines are sealed at every partition they pass through.

WHO SPECS US IN

Where our tanks go to work.

Illustration of a fire pumper carrying a black polypropylene water tank

Fire & Rescue

Apparatus builders and departments specifying water and foam tanks and polypropylene components, built to the chassis they ride in.

Power Generation

Genset packagers and OEMs who need a DEF tank built to the space they have, not the space a catalog assumes. In the stub area of a sub-base tank, alongside the enclosure, or under a covered deck with a strict footprint, we solve the footprint problem.

Illustration of a truck-mounted industrial water tank

Industrial Fluid Handling

Equipment builders and shops with water, wash, and chemical tanks on trailers, skids, and trucks, sized to the application.

FACTORY REPRESENTATIVE

Represented by Davidson Sales Co.

Our DEF / Urea tank line is represented by Davidson Sales, distributor and manufacturers’ representative for power generation components and accessories, Daytona Beach, Florida.

DAVIDSONSALES.COM
Davidson Sales Co.

GETTING STARTED

Send us a specification or a drawing.

That is all it takes to start. You get a quote with a rendering of your tank, then a submittal drawing with every port placed and every dimension finalized before we cut sheet.

01

You send a spec or a drawing

A formal drawing, a sketch, or just the footprint, capacity, and fluid. Port sizes, mounting, and quantity help if you have them.

02

We return a quote with a rendering

Your tank drawn to your dimensions, so you can see the fit before you commit.

03

You approve a submittal drawing

Ports placed, features selected, dimensions finalized. Production starts on your approval.

NO MOLDS  ·  NO MINIMUM ORDERS  ·  A REAL PERSON ON THE PHONE
